If Your Steel Drum Isn't Round, Nothing Else Matters

I once walked into a steel drum factory where the rejection rate was hovering around 8 percent. That's huge for a production

line running 24/7. When I asked the quality manager what the most common defect was, he said: “They're just not round

enough to weld right.” Some drum bodies had gaps so wide between the two edges that the seam welder had to push the

metal together, creating stress in the weld. Others were slightly egg-shaped, which caused problems later when the flanging

and seaming machines tried to do their job. Every single one of those problems started at the same place: the steel drum

curling machine.

Here's the thing that a lot of manufacturers don't appreciate. Your Steel Drum Rolling Machine—what the industry often calls

a curler or a three-roller bender—is the very first step in shaping that flat piece of steel into a drum body. If it rolls a cylinder

that's even a millimeter off in diameter or slightly out of round, that imperfection carries through the rest of your line. Your

welder struggles to close the seam. Your flanger can't make an even flange. Your seamer can't seal a lid onto an out-of-round

body. And you end up scrapping drums that looked perfectly fine until the final test. So if there's one piece of advice I’d give

you about your steel drum curling equipment, it's this: don't try to save money here. You'll pay for it later.

How does a steel drum curler actually work? The most common design uses three rollers arranged in a triangle. The flat sheet

in between the two lower rollers, which are driven by a motor and gearbox. An adjustable top roller presses down on the sheet,

bending it as it passes through. As the sheet keeps feeding, the top roller gradually forms it into a cylindrical shape. The

roundness of the drum depends on the position of that top roller and how precisely it's controlled. In older machines, the top

roller adjustment is manual—a turnbuckle or a threaded screw that you set by feel. In modern ones, it's servo-controlled, with

feedback from sensors that measure the curvature as it forms.

So, what kind of curling machine should you choose for your steel drum production line? That depends on your production

volume and your quality requirements. There are three broad categories: manual, semi-automatic, and fully automatic.

A manual curling machine is the cheapest option. You load the sheet by hand, adjust the top roller by turning a handwheel,

and pull the finished cylinder off by hand. It's suitable for a small shop making maybe 20 to 50 drums a day, or for occasional

runs of specialty sizes. But manual machines have a downside: they depend on the operator's skill and attention. If the

operator is rushing, the roundness can vary from one drum to the next. If they're distracted, they might not close the seam

gap tight enough for the welder. It's not impossible to make good drums with a manual curler—I've seen it done—but you

need experienced, careful operators.

A semi-automatic curling machine adds hydraulic or pneumatic power to the top roller adjustment and sometimes to the

loading and unloading. The operator still positions the sheet and starts the cycle, but the rolling action is more consistent

because the pressure is regulated by a valve or a PLC instead of by hand. This is the most common type in medium-volume

steel drum lines. It's a good balance of cost and consistency, and it's what most factories upgrade to when they move from

manual operation.

A fully automatic curling machine is the top tier. It includes automatic sheet feeding from a stack or conveyor, servo-driven

roller positioning with closed-loop control, and an automatic unloader that transfers the rolled cylinder directly to the welder.

 The operator's job is basically to monitor the machine and load sheets into the feeder. Roundness on these machines is

incredibly consistent—within half a millimeter across a whole shift. If you're running hundreds of drums an hour and your

customer requires tight dimensional tolerances, this is what you need.

Here's a practical tip that's saved more than one factory from headaches: make sure your curler includes a close-gap

adjustment. Some sheets have a slight springback effect after bending—the steel tries to straighten back a little—and that can

leave a gap between the two edges of the drum body. A good curling machine will have a roll that over-bends the edges

slightly, so when the sheet springs back, the edges meet flush. If your curler doesn't have that, you'll often find yourself

wrestling with the welder to close the gap, which leads to inconsistent welds.

When you're evaluating a Steel Drum Curling Machine, also look at the roller material. The rolls are what actually contact the

steel, and they wear down over time. Some manufacturers use hardened steel rollers that can be reground when they get

worn. Others use coated rollers with a carbide layer that lasts longer. The cost difference between them is real, but the longer

wear life often justifies the premium.

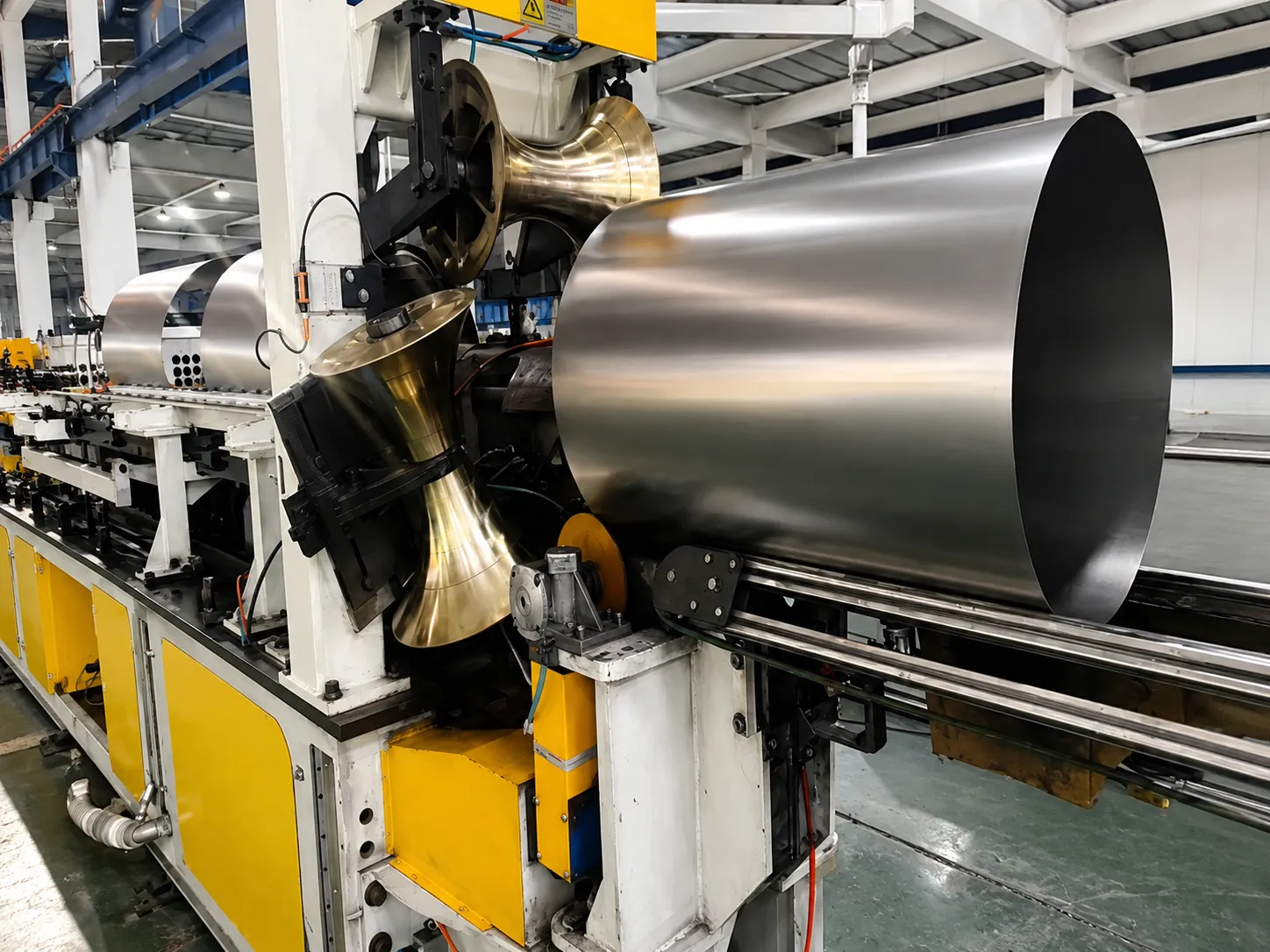

One more thing: think about how your curling machine integrates with the rest of your line. If you're setting up a new

production line, look for a curler that can be paired directly with your seam welder. Many suppliers offer a rolling-welding

combination unit that does both jobs in one continuous flow—sheet goes in, round body with a welded seam comes out.

That configuration saves you floor space, reduces material handling, and gives you a single control point for both machines.

At the end of the day, your steel drum curling machine doesn't just make a cylinder. It makes the foundation for every other

operation downstream. If you start with a round, well-formed body, you're giving your welder, flanger, beader, and seamer a

fighting chance. If you start with something that's out of round or poorly shaped, you're building on a weak foundation—and

that's a recipe for quality problems you'll never fully resolve. I've seen it happen, and trust me, it's a lot harder to fix later than

 it is to get right at the start.
