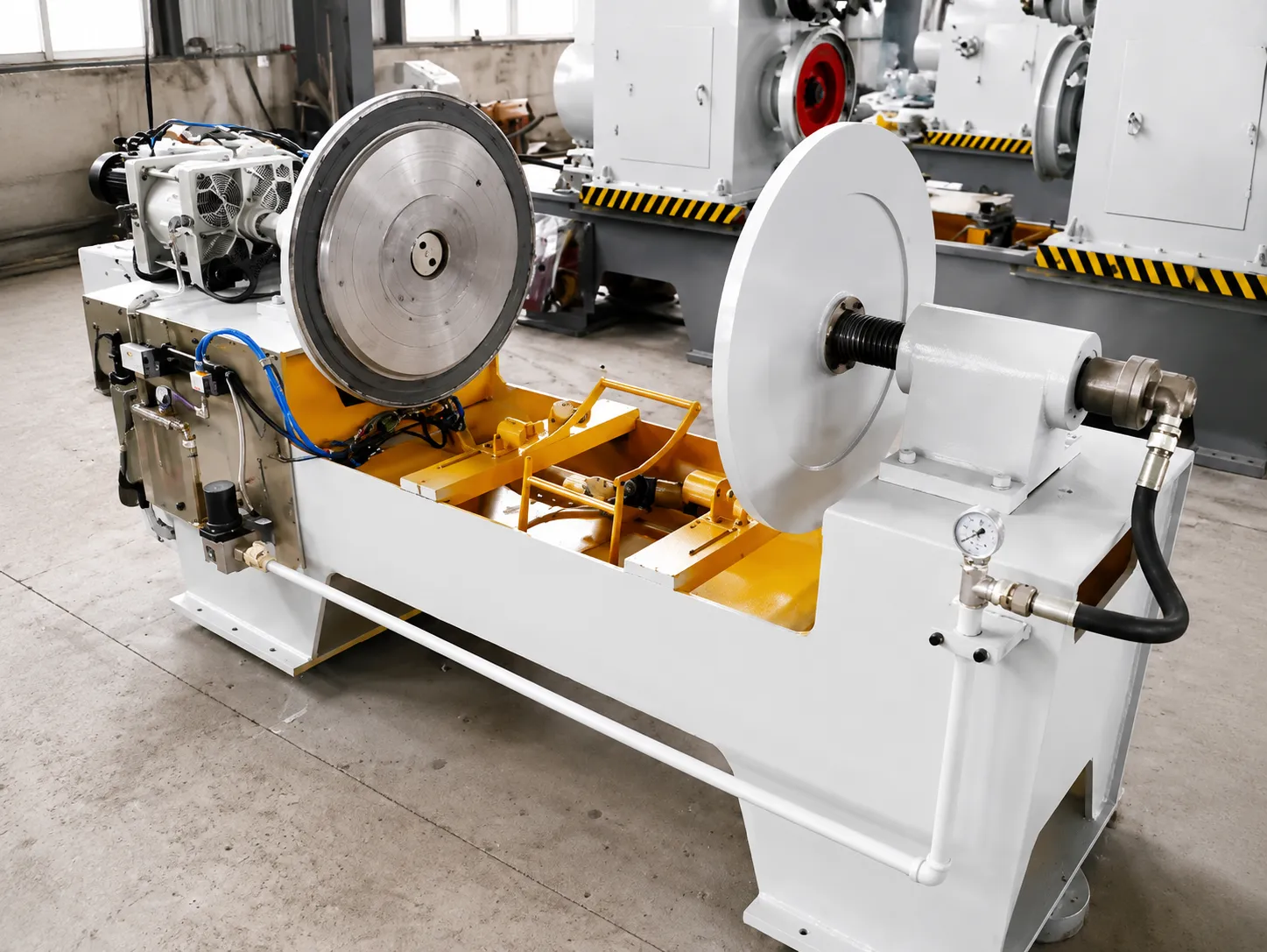

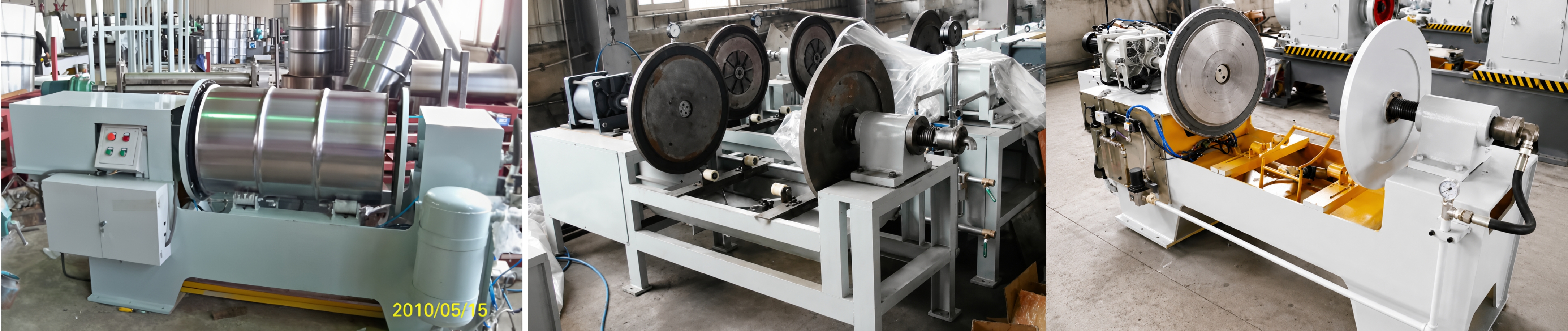

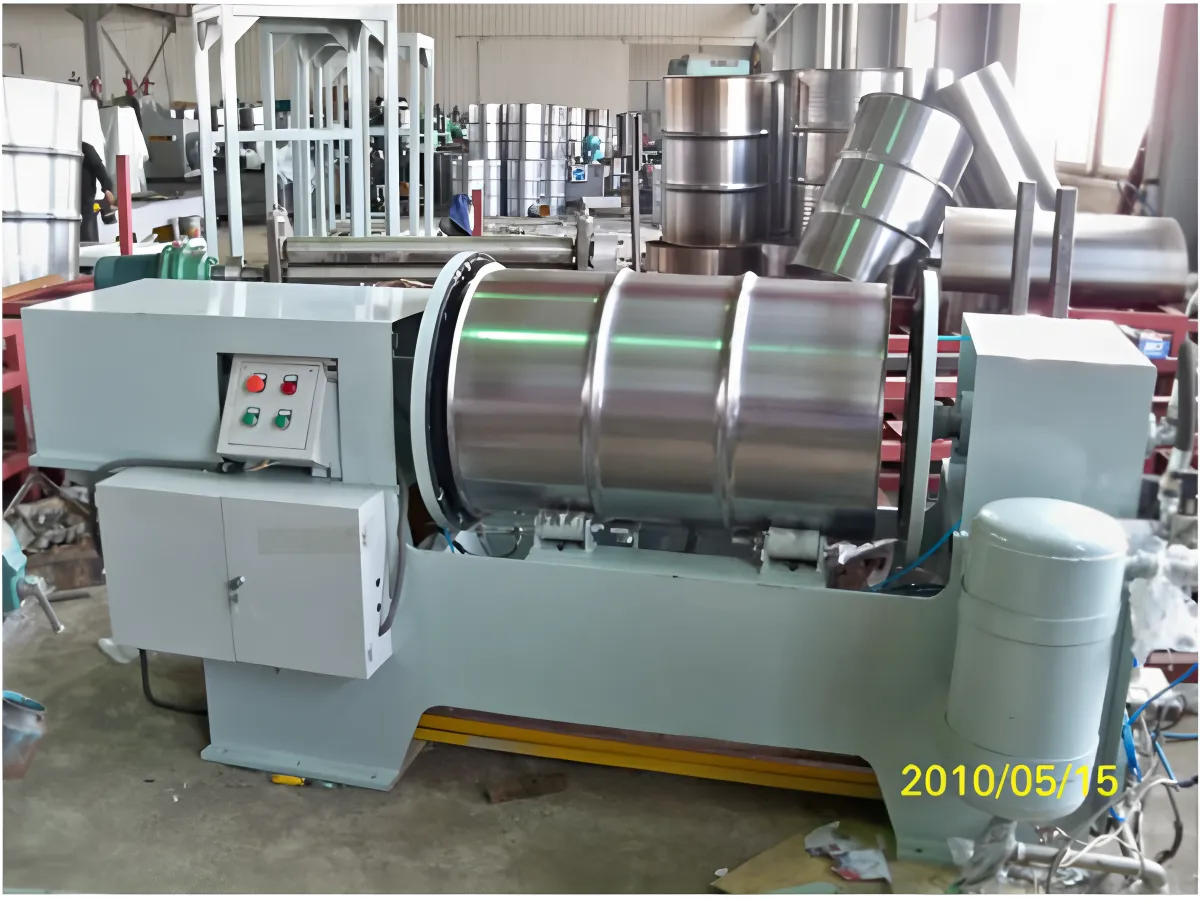

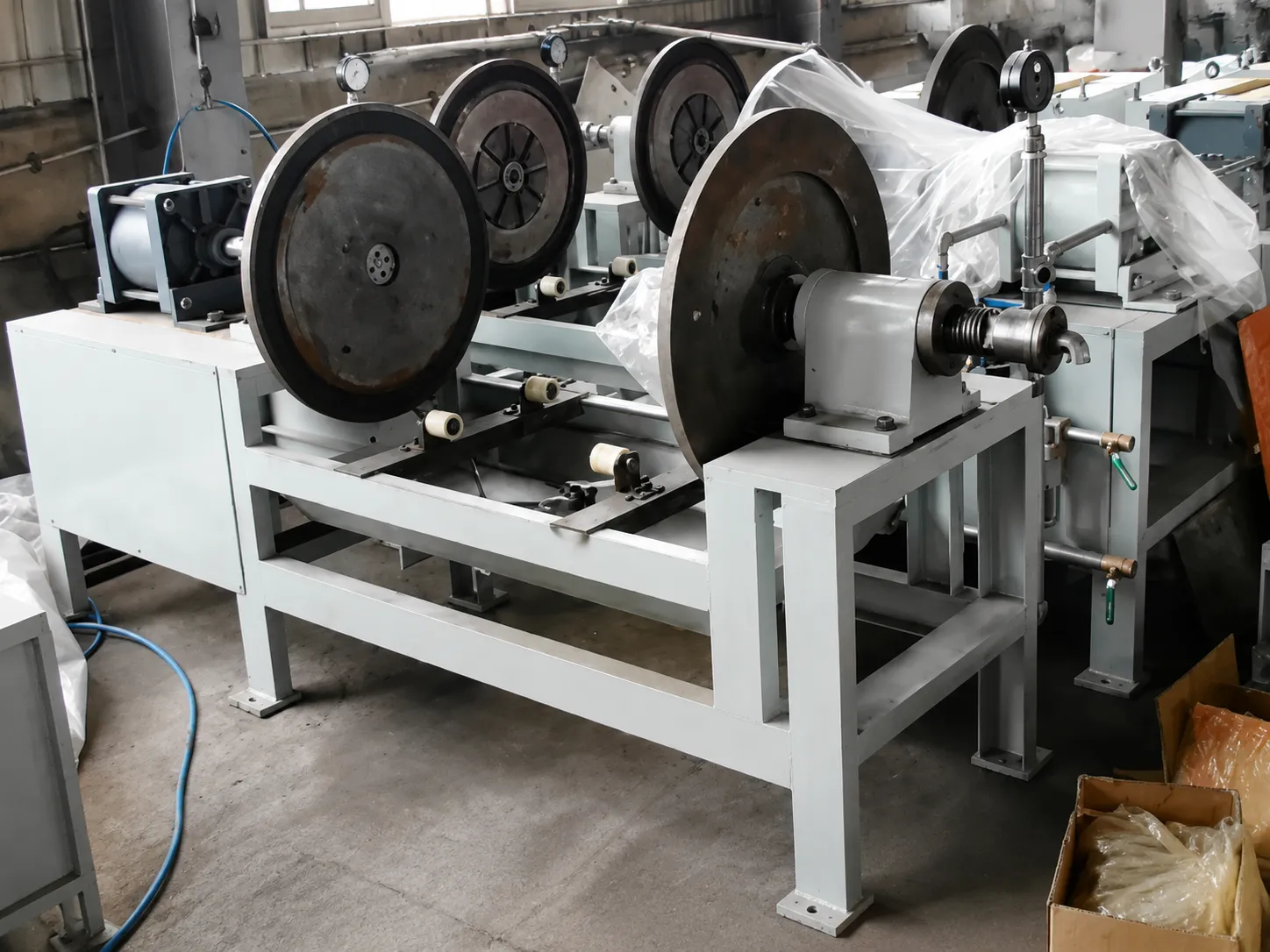

Product Overview
The Steel Drum Airtightness Tester (also known as a steel Drum Leak Detector or seal integrity tester) is specialized equipment used to evaluate the sealing performance and pressure resistance of steel drums. Airtightness testing is a mandatory 100% inspection step in steel drum production, with a maximum allowable leak rate of 1‰. The equipment determines whether a drum meets specifications by pressurizing its interior with compressed air (or another test medium) and monitoring for pressure drops or gas leakage.
The integrity of these containers is paramount, particularly when they are used to transport hazardous chemicals, toxic substances, or sensitive pharmaceutical ingredients. A single compromised drum can result in product loss, environmental contamination, safety hazards, and significant regulatory penalties. This is where the steel drum airtightness tester plays an indispensable role in quality assurance and production control.
Steel drum airtightness testing has evolved significantly over the decades. Historically, tightness checks were performed by applying differential pressure using simple air or by visual bubble inspection on limited areas. In the 1980s, some chemical companies began requesting more sophisticated testing using helium and mass spectrometry. Today, modern steel drum airtightness testers are capable of testing hundreds of drums per hour with high precision and automation.
A steel drum airtightness tester is a specialized piece of quality control equipment designed to evaluate the sealing performance and leak integrity of steel drums. This device systematically pressurizes or depressurizes a drum and monitors for pressure changes that would indicate the presence of leaks in the container's structure, seams, or closures.
The fundamental purpose of a steel drum airtightness tester is to quantify the sealing performance of steel drums through scientific and rigorous testing procedures. These testers are essential tools in manufacturing facilities, quality control laboratories, commercial inspection agencies, and universities.
Steel drum airtightness testers operate on the principle of creating a pressure differential between the interior and exterior of the drum. By pressurizing the drum with compressed air or creating a vacuum within a sealed chamber, the tester can detect even microscopic leaks that would compromise the drum's integrity during storage and transportation.
Modern steel drum airtightness testers feature computer-based display control for recording and saving pressure readings. They deliver high measurement accuracy and enable rapid testing of pressure values. These devices are patented products with simple operation, making them accessible for routine quality control applications.
The steel drum airtightness tester is capable of testing various types of steel drums, including both Tight Head (TH) drums (also called 1A1 drums) with 2" and ¾" NPS bung holes, and Open Head (OH) drums (also called 1A2 drums). This versatility makes the steel drum airtightness tester an essential piece of equipment across the packaging industry.
Depending on the testing principle and application scenario, the following primary test methods are used:
Positive Pressure Method (Standard): Compressed air is injected into the drum, and the pressure drop is monitored over a specified period to determine if a leak exists.

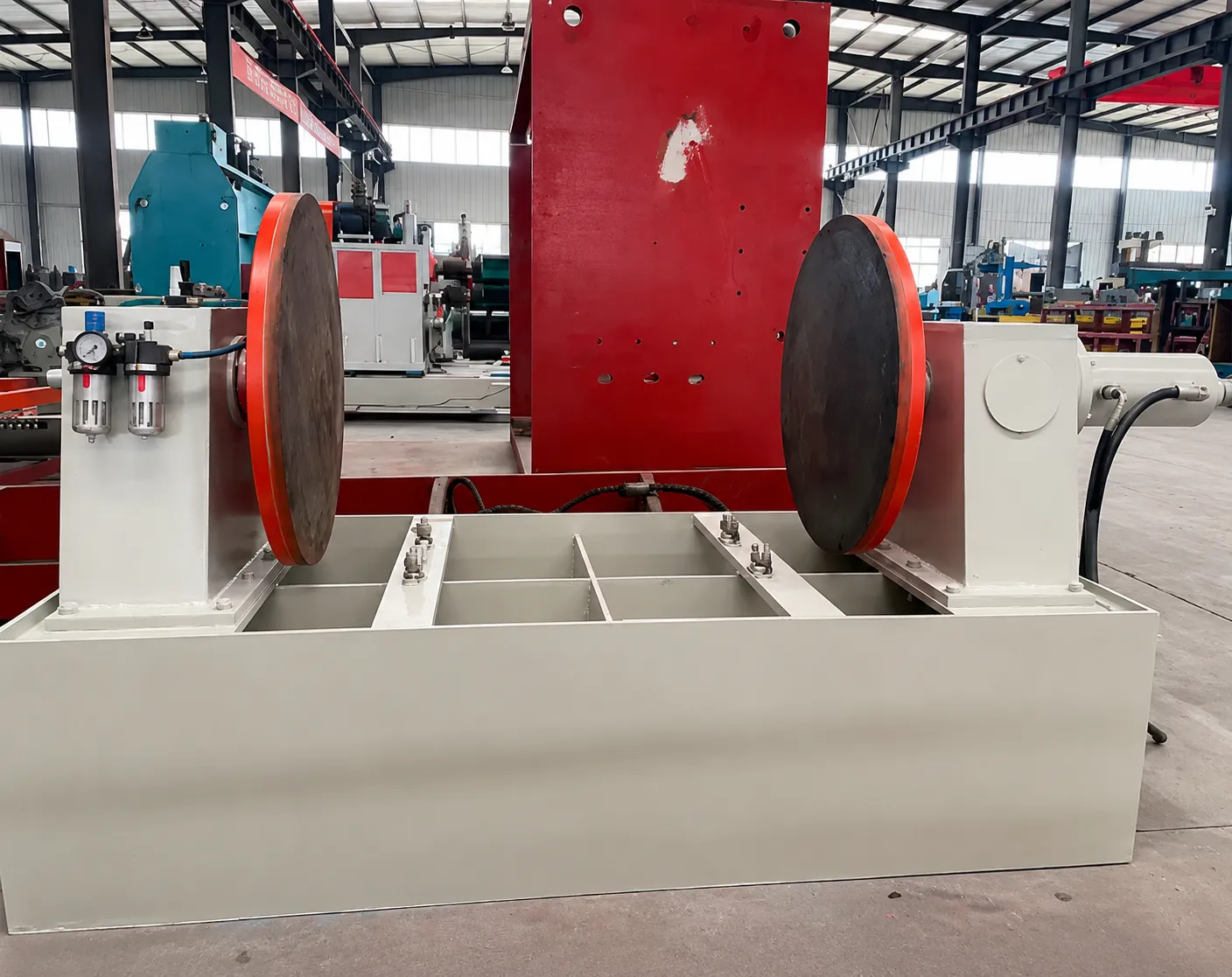

Water Immersion Method (Bubble Method): The pressurized drum is submerged in water, and leak points are located by observing the position of escaping air bubbles.
Vacuum Chamber Method: The drum is placed inside a sealed vacuum chamber, and any escaping gas is detected.
Tracer Gas Method (Helium Testing): Helium gas is injected into the drum, and a mass spectrometer is used to detect minute leaks; this method offers extremely high sensitivity.
Technical Specifications
| Parameter Name | Technical Specification Range |
| Applicable Drum Types | Open-head drums, tight-head drums, round drums, square drums |
| Applicable Capacity | 30–250 liters (standard: 200 liters/55 gallons) |
| Testing Method | Positive pressure method / Vacuum chamber method / Water immersion method |
| Pressure Range | 0–500 kPa (standard); 0–200 kPa (light-duty); up to 1 MPa (customized) |
| Pressure Accuracy | ±0.5% F.S. or ±1 kPa |
| Test Medium | Compressed air (requires external air source: 0.4–0.9 MPa) |
| Power Supply | AC 220V 50Hz (customizable to 110V/60Hz) |
| Equipment Weight | Benchtop: approx. 8–20 kg; In-line: 250–2000 kg |
A steel drum airtightness tester is a quality control device that evaluates the sealing performance of steel drums by pressurizing or depressurizing them and monitoring for leaks.
Steel drum airtightness testing ensures container integrity, prevents product loss, protects against environmental contamination, and is required for regulatory compliance.
The main methods are bubble immersion, pressure decay, vacuum decay, soap solution application, and helium mass spectrometry.
Standard test pressures range from 10 kPa to 30 kPa, with UN requirements of 20 kPa for Packing Groups II and III, and 30 kPa for Packing Group I.
Modern automated steel drum airtightness testers can test up to 900 drums per hour, with some systems reaching 1,080 drums per hour.
Key standards include UN/DOT regulations, ASTM E1003, ASTM E515, ASTM D5582, ISO 15750-3, and GB/T 17344.
Tight Head (1A1) drums have welded tops with bung holes for filling and emptying, while Open Head (1A2) drums have removable lids.
The leak rate is calculated by multiplying the pressure drop by the inner volume of the drum and dividing by the measurement time.
Helium mass spectrometry is the most sensitive method, capable of detecting extremely small leaks.
Pressure gauges should be calibrated monthly, with comprehensive system calibration performed quarterly.
Failed drums should be rejected, repaired if possible, and retested. Leakers shall be rejected or repaired and retested without failure.
While not all drums are tested, those intended for hazardous materials transport must be tested. Many manufacturers test 100% of production for quality assurance.
The bubble immersion method involves pressurizing the drum and submerging it in water to visually observe bubbles indicating leaks.
The vacuum decay method places the drum in a vacuum chamber and monitors pressure changes that indicate leaks.
Modern testers can be integrated as in-line systems that automatically test drums at production speed, separate defective units, and provide real-time quality data.
The steel drum airtightness tester is an essential quality control instrument for the packaging industry. Whether using pressure decay, vacuum decay, bubble immersion, or helium mass spectrometry, these devices ensure that steel drums meet the rigorous requirements for containing and transporting liquids, chemicals, and hazardous materials.
With production speeds reaching up to 900 drums per hour and detection sensitivities down to microscopic leak sizes, modern steel drum airtightness testers combine speed, accuracy, and reliability. Compliance with international standards including UN/DOT regulations, ASTM standards, and ISO requirements ensures that steel drums bearing certifications have undergone proper testing.
As the global market for leak testing equipment continues to grow, the steel drum airtightness tester will remain a cornerstone of quality assurance in the packaging industr
