Steel Barrel Airtight Tester

This automatic drum leak testing machine delivers high inspection efficiency with a fast 3–5-second single-drum testing cycle, supporting line speeds of 350–900 drums per hour for mass continuous production. It achieves superior detection precision, identifying tiny leaks down to φ0.03 mm with a 0.5% F.S. accurate pressure sensor to cut false detection rates. Multiple test modes including positive pressure, vacuum chamber, water immersion and helium mass spectrometry are configurable to match varied sensitivity and standard demands. Equipped with PLC/PC touchscreen control, it visualizes real-time pressure-time curves and archives exportable, printable test data for full quality traceability. Highly compatible with 30–250 L open/tight-head, round/square steel and plastic drums, the unit offers explosion-proof variants for hazardous sites, plus overpressure and emergency stop safeguards to avoid workpiece damage. Fully compliant with GB/T, ISO and UN dangerous goods transport standards for easy export certification, it features modular wear-part replacement, one-touch operation and compact bench-top sizing for simple daily use and maintenance.

يشارك：

اتصل بنا

تحقيق

صندوق البريد：sales01@fujad.com

واتس اب：8617852488518

مقدمة مفصلة

Product Overview

Our Steel Barrel Airtight Tester, also called steel Drum Leak Detector or seal integrity tester, is dedicated testing equipment for verifying the sealing performance and pressure resistance of metal barrels. Airtight inspection is a compulsory full-check procedure for every finished steel drum during mass manufacturing, with the qualified leak rate capped at 1‰. This machine fills drums with compressed air or other testing media, then judges product qualification by tracking internal pressure drop or capturing escaping gas.

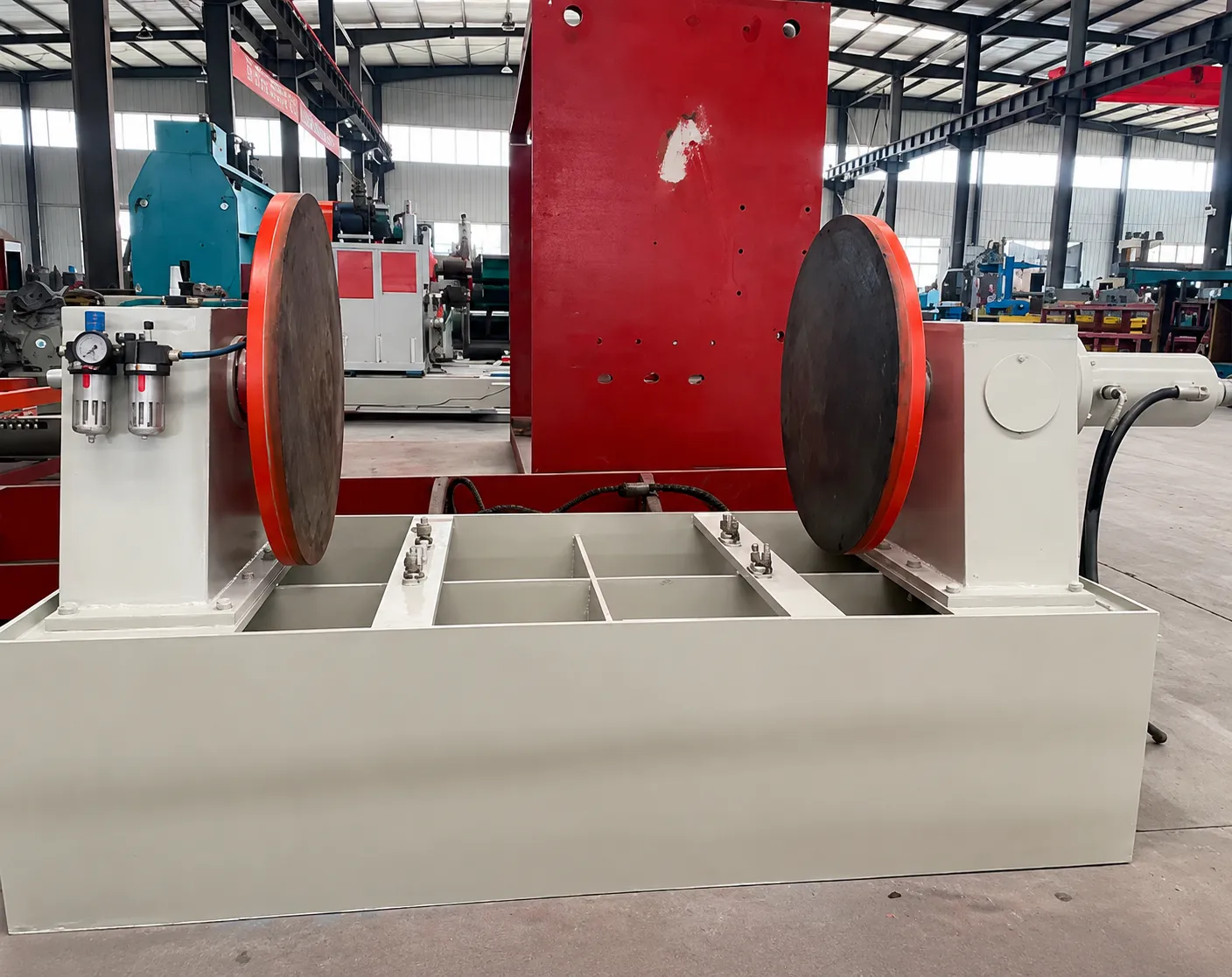

We support four mainstream customizable testing solutions to fit different inspection standards and sensitivity demands. The standard positive pressure method tracks pressure attenuation after air inflation for routine batch inspection. The water immersion bubble method submerges pressurized barrels to visually pinpoint exact leak spots. The vacuum chamber approach detects gas outflow by creating a negative-pressure enclosed environment around the drum. For ultra-precise micro-leak detection, the helium tracer gas method paired with a mass spectrometer delivers the highest testing accuracy, ideal for high-standard export-grade steel drum production.

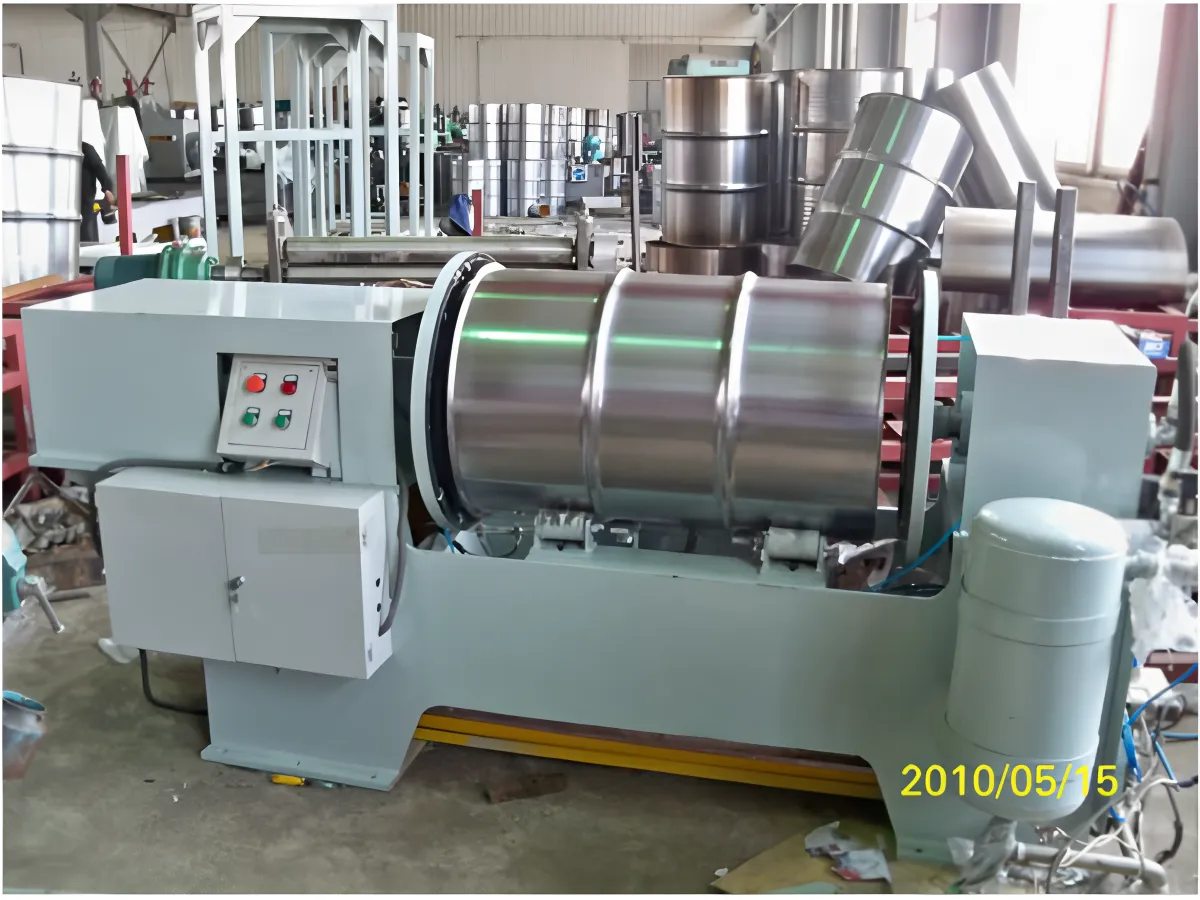

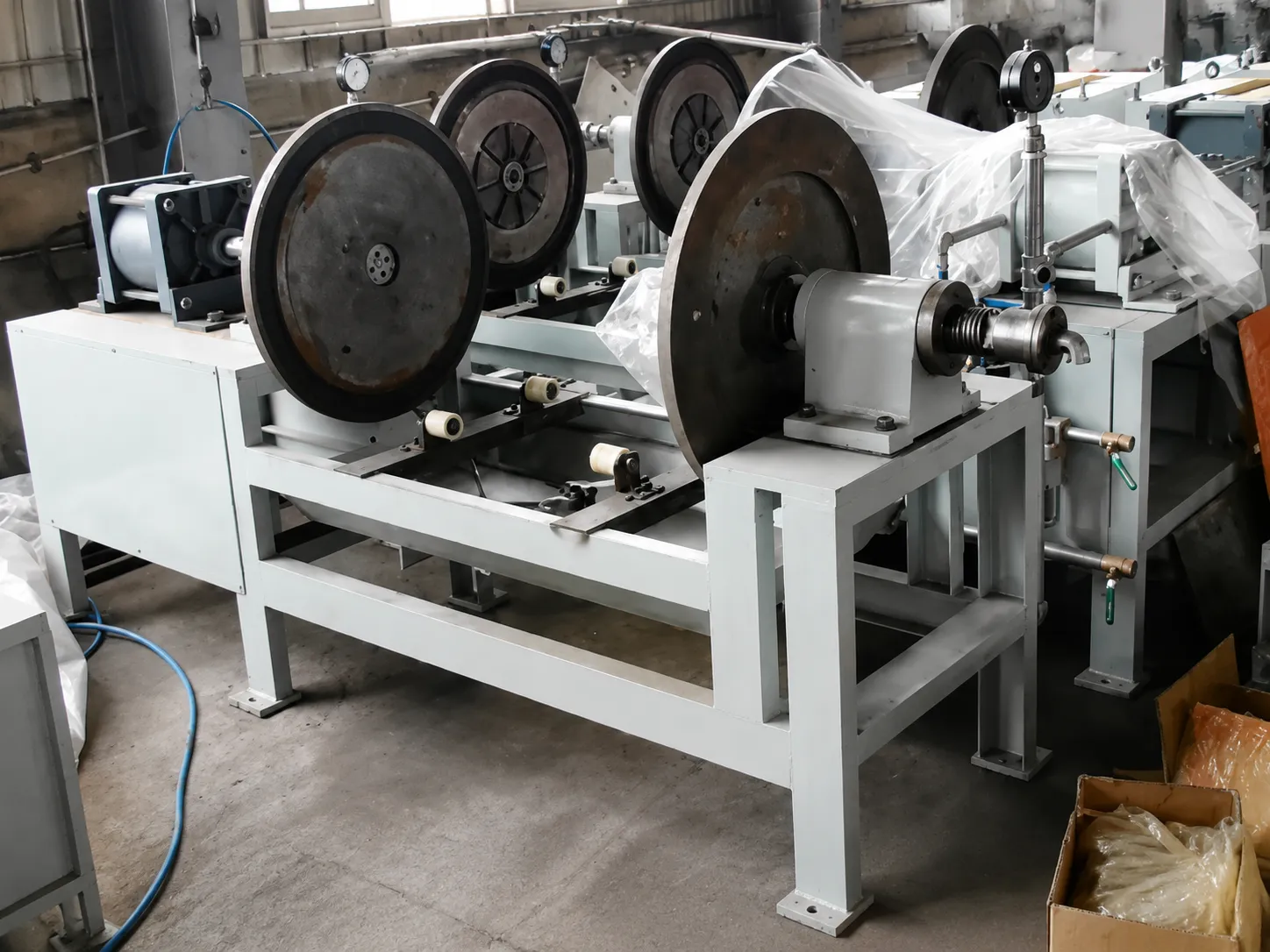

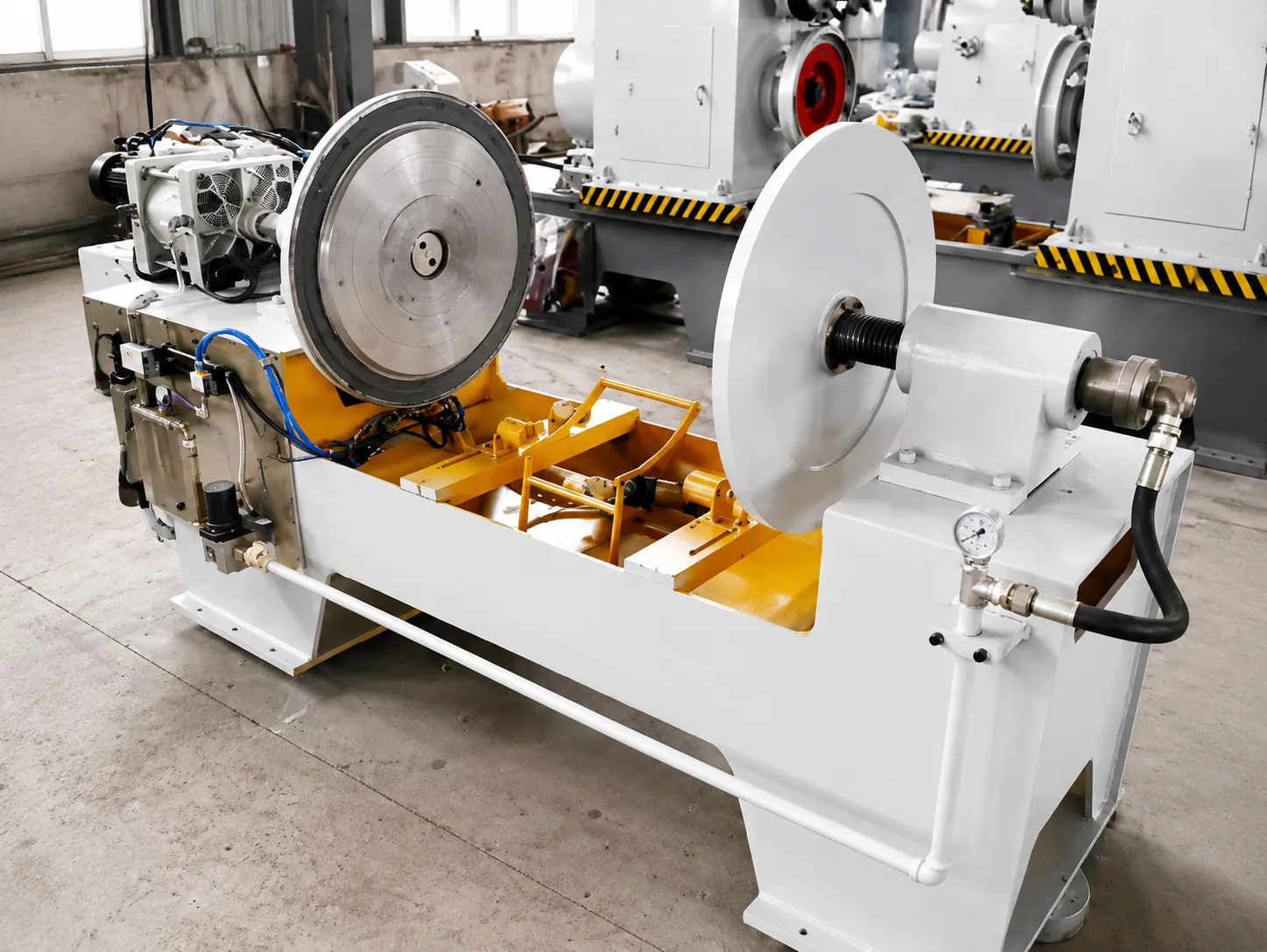

Steel Barrel Airtight Tester

General Specifications

Parameter Name	Technical Specification Range
Applicable Drum Types	Open-head drums, tight-head drums, round drums, square drums
Applicable Volume Capacity	30–250 liters (standard configuration for 200 liters / 55 gallons)
Available Testing Methods	Positive pressure method, vacuum chamber method, water immersion method
Working Pressure Range	0–500 kPa (standard); 0–200 kPa (light-duty model); maximum 1 MPa (custom-made)
Pressure Measurement Accuracy	±0.5% F.S. or ±1 kPa
Test Medium	Compressed air; external air source required: 0.4–0.9 MPa
Power Supply	AC 220V 50Hz (customizable to 110V/60Hz)
Equipment Weight	Benchtop unit: about 8–20 kg; production in-line unit: 250–2000 kg
