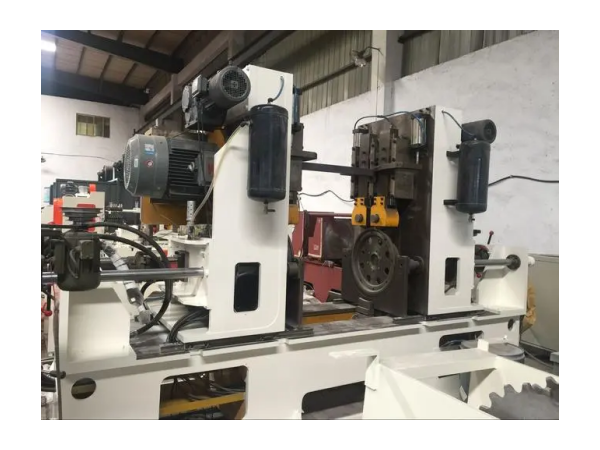

Steel Barrel Seaming Machine

This new vertical seaming machine integrates high efficiency, precise sealing, stable operation and intelligent control, outperforming conventional equipment comprehensively. It delivers outstanding production capacity with a cycle time of only 3.2–3.5 seconds per drum and an hourly output ranging from 100 to 900 drums, greatly boosting overall line productivity. Equipped with multi-stage seaming technology and heat-treated high-precision seaming rollers, it achieves tight, leak-proof sealing with robust structural strength. Boasting excellent universal compatibility, it accommodates drums of diverse sizes and irregular shapes with quick, simple format changeovers. Built with a heavy-duty welded frame and wear-resistant core parts, the machine maintains consistent sealing accuracy during long-run operation. Supported by a PLC intelligent control system, it enables unattended continuous production with energy-saving operation to cut reject rates and material loss. Its modular layout simplifies part replacement and routine maintenance, lowering long-term operational costs for manufacturers.

يشارك：

اتصل بنا

تحقيق

صندوق البريد：sales01@fujad.com

واتس اب：8617852488518

مقدمة مفصلة

Product Overview

Steel Barrel Seaming Machine, also referred to as barrel closing machinery, serves as an indispensable core unit within the full steel barrel fabrication production line. Its core function relies on mechanical roller forming to tightly connect the barrel shell with the top or bottom end cap, finishing the last forming and airtight sealing step of finished steel barrels. Since the forming quality of the seaming joint will directly decide the barrel’s leak-proof effect and overall service lifespan, this seaming device occupies an irreplaceable position in the metal barrel processing sector.

Its working mechanism works as follows: a set of profiling pressure rollers with custom molded grooves perform rotary motion around the steel barrel, and move forward to the sealing position step by step. Under continuous extrusion force, the overlapping flanges of the barrel body and end cap bend and interlace layer by layer following a standardized forming track, forming a compact interlocked seaming structure. When matching sealant is coated on the connecting seam, the finished steel barrel can obtain stable and outstanding sealing capacity.

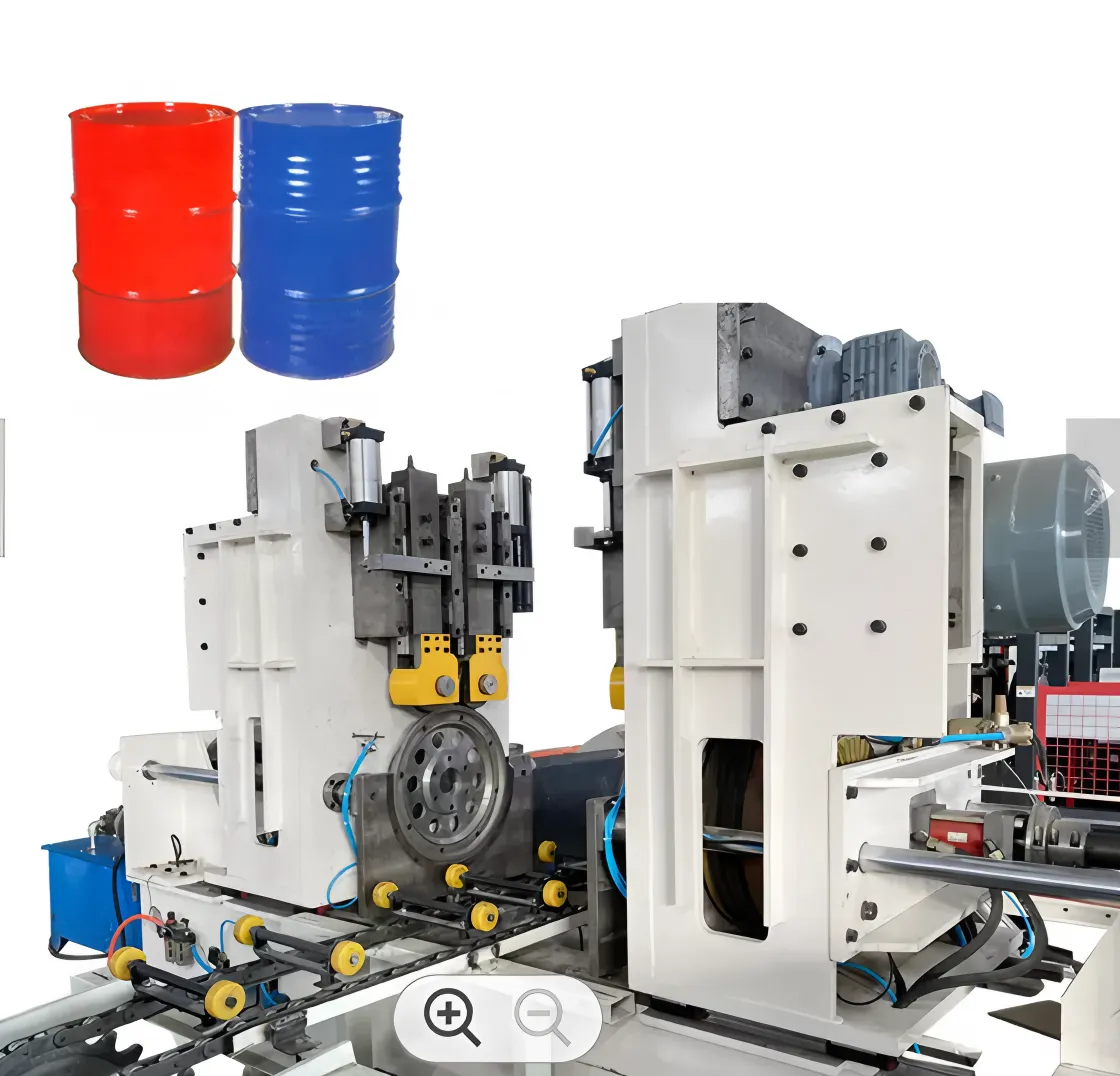

Steel Barrel Seaming Machine

General Specifications

Parameter Name	Technical Specifications
Applicable Drum Diameter	Φ350–600 mm (some models support Φ280–571.5 mm)
Applicable Drum Height	600–1000 mm
Applicable Wall Thickness	0.4–1.5 mm
Seaming Type	Double seam / Triple seam
Number of Seaming Rollers	2–3 per side (optional configuration)
Control Method	PC/PLC programmable control; adjustable via keyboard input

Product advantage

1. High-Efficiency Production

The production cycle reaches 3.2–3.5 seconds per drum, with the mechanical cycle time as low as 3.2 seconds. Its hourly output ranges from 100 to 900 drums, covering diverse mass production demands and drastically improving overall production line efficiency to help manufacturers raise output and profits.

2. Superior Sealing Quality

Core seaming rollers undergo special heat treatment to reach HRC58–60 hardness for high precision and wear resistance. Matched with precision cam mechanical adjustment, the machine delivers tight, firm seams and eliminates leakage risks to guarantee uniform sealing quality for every drum.

3. Multi-Stage Seaming Technology

It supports double-seaming (2 rollers) and triple-seaming (3 rollers) to meet varying sealing grade requirements. Rollers are designed based on the involute principle to form a seven-layer arc structure, which reinforces seam strength and upgrades sealing tightness and pressure resistance.

4. Wide Compatibility

Applicable to drums with diameters of Φ350–600mm, heights of 600–1000mm and wall thicknesses of 0.4–1.5mm. It fits standard round drums as well as square, oval and other non-round vessels. Format changeover and parameter adjustment can be finished effortlessly for flexible multi-product production.

5. Stable & Reliable Performance

The machine adopts an integrated welded steel frame and hardened, precision-ground guide rails for solid structural stability. All key components feature superior wear resistance and long service life. Simultaneous primary and secondary clamping prevents relative rotation between drum bodies, bottoms and lids, ensuring consistent sealing precision throughout production.

6. Intelligent Automatic Control

PC/PLC programmable control enables fully automatic production and parameter adjustment via keypad input. Equipped with dual independent drive motors, variable frequency speed regulation and a built-in self-diagnostic system, the machine supports long-term continuous unattended operation and reduces manual labor costs.

7. Energy-Saving & Eco-Friendly

Compared with traditional seaming equipment, this new vertical model achieves remarkable power consumption reduction. Its stable standardized seaming process cuts defect rates and minimizes raw material waste, realizing low-cost and eco-friendly manufacturing.

8. Low-Maintenance Design

The modular structure allows fast disassembly and replacement of seaming rollers. Drum diameter adjustment is realized by replacing seaming plates and adjusting roller travel via a ratchet mechanism. The compact overall layout simplifies daily inspection, overhaul and maintenance to save downtime.

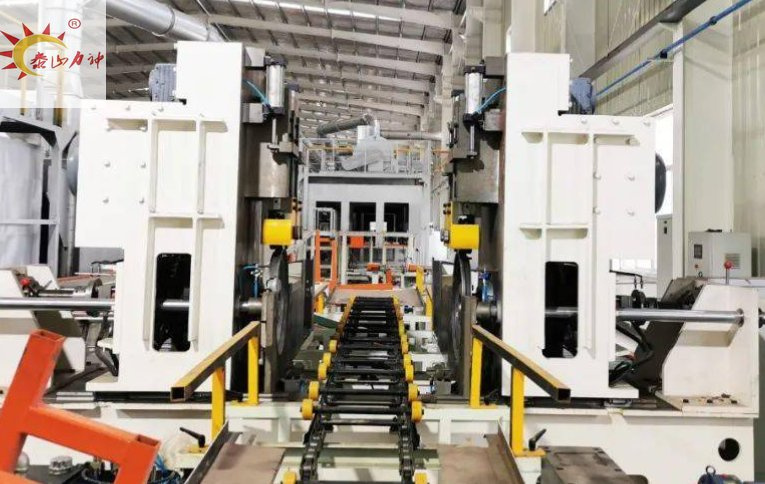

Steel Barrel Seaming Machine.jpg
