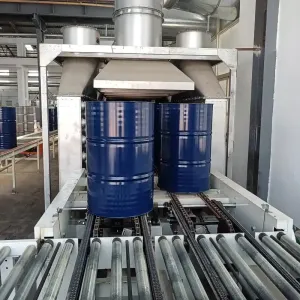

Steel Drum Spray Booth

Enhanced Efficiency: Fully automated spraying with a daily capacity of up to 1,000 drums per unit; productivity is more than eight times higher than manual spraying. Uniform Coating: Utilizes electrostatic or airless spraying technology; coating thickness variance is ≤±5μm, ensuring no sagging or missed spots and providing strong adhesion. Cost Savings: Reduces labor requirements by over 70%; precise spraying combined with powder recovery (rate >85%) significantly minimizes material waste. Environmental Compliance: Low VOC emissions, with optional exhaust recovery systems available; powder coating offers zero VOC emissions and 30% energy savings. Flexible Switching: Compatible with various drum types (60–200L; open-head, tight-head, or tapered) and allows for rapid changeovers. Safety & Reliability: Explosion-proof design (ExdIIBT4); utilizes premium components from brands like Nordson and SMC, ensuring a low failure rate. Ease of Operation: PLC stores multiple spraying parameters for one-touch recall; modular structure simplifies maintenance.

يشارك：

اتصل بنا

تحقيق

صندوق البريد：sales01@fujad.com

واتس اب：8617852488518

مقدمة مفصلة

Steel Drum Spray Booth: Principles, Quality Control and Industry Development

Steel drums are indispensable industrial packaging containers for storing and transporting petroleum solvents, chemical coatings, edible oils and bulk industrial materials. Their outer and inner coating layers determine anti-corrosion performance, service life and compliance with industrial safety standards. As global environmental regulations grow stricter and downstream industries raise higher requirements for packaging surface quality, standardized and enclosed steel drum spray booth equipment has become a core supporting facility for modern steel drum production. It replaces traditional open-air spraying operations, solving the problems of uneven coating, dust contamination and paint mist pollution, and promoting the standardized and environmentally friendly upgrading of the metal drum manufacturing industry.

A steel drum spray booth is a professional enclosed spraying and purification system specially customized for cylindrical steel drum workpieces. Different from ordinary industrial spray booths, it adapts to the cylindrical structure, rotating processing mode and batch production characteristics of steel drums. The core working principle relies on controllable circulating airflow and venturi water curtain purification technology. Filtered clean air forms a stable laminar flow environment inside the booth, while the exhaust system captures floating paint mist. The water curtain and gas-water separator fully mix and filter residual paint particles, realizing integrated operations of dust-free spraying, overspray collection and exhaust purification.

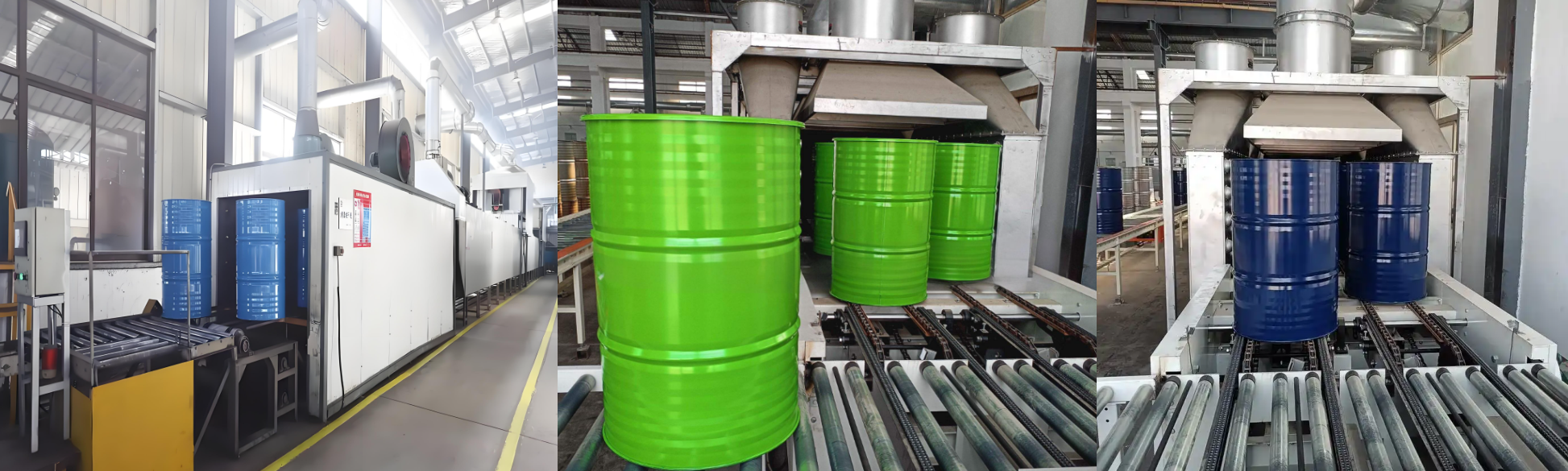

Tin Can Manufacturing Equipment.png

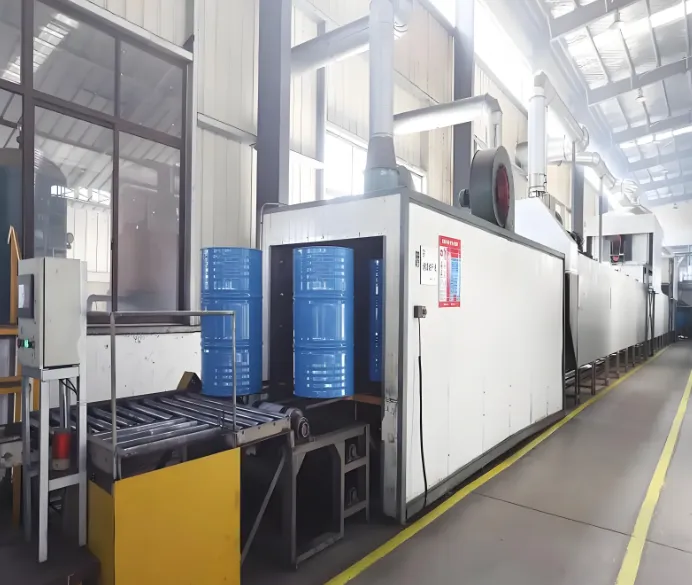

The mainstream steel drum spray booth features a modular structural design, consisting of a sealed booth body, automatic rotating drum conveying mechanism, paint supply and spraying system, constant temperature air supply filtration module and paint mist purification device. The booth body adopts thickened color steel plates or galvanized steel sheets for tight sealing, effectively isolating external dust and impurities. Equipped with high-precision top filters, the equipment can filter fine particles above 1μm, ensuring a clean spraying environment. Most models adopt water curtain purification structures, which deliver higher paint mist removal efficiency and lower operating costs compared with dry filtration types, fully adapting to long-term batch spraying of steel drums.

Multiple key factors directly affect the spraying quality and operational stability of steel drum spray booths. First, airflow uniformity is the core indicator; unstable air velocity will cause paint accumulation, sagging or uneven film thickness on the drum surface. Standard working air velocity is maintained at 0.18m/s to balance spraying uniformity and overspray removal efficiency. Second, temperature and humidity control matters significantly—excessively high humidity leads to paint film blistering, while low humidity causes dry spraying and rough surfaces. Third, the operating stability of the rotating conveying system determines consistent spraying coverage of the drum body, avoiding local missing spraying. In addition, regular cleaning of water curtain circulation systems and filter screens is essential to prevent purification efficiency decline.

Reasonable supplier selection guarantees long-term stable operation of spray booth equipment. Excellent steel drum spray booth manufacturers need to possess customized design capabilities for metal drum production lines, matching different drum diameters and heights. Core selection criteria include booth sealing performance, paint mist purification rate, energy consumption level and automatic matching degree with front and rear production lines. Qualified suppliers provide integrated services including on-site debugging, parameter optimization and regular maintenance guidance, helping manufacturers meet local environmental emission standards while ensuring continuous and stable spraying quality.

Steel drum expansion machine.png

The steel drum spraying industry still faces prominent practical pain points in actual production. Many small and medium manufacturers still use backward open spraying modes, resulting in serious paint mist pollution, unqualified exhaust emissions and inconsistent product surface quality. Some low-end spray booths have unreasonable airflow structural design, prone to residual paint mist inside the booth, which reduces finished product yield. In addition, traditional equipment has poor flexibility, failing to adapt to rapid switching of steel drums with different specifications, and manual auxiliary adjustment increases labor costs and production errors.

Steel drum spray booths are widely used in standardized production scenarios of various industrial packaging drums. In the chemical industry, high-purification spray booths are used for anti-corrosion coating of chemical solvent drums to prevent chemical corrosion and extend container service life. In the food and oil industry, closed dust-free spraying ensures clean and non-polluting outer coating of edible oil drums, meeting food-grade packaging hygiene requirements. In petrochemical and logistics industries, batch spraying equipment supports mass production of industrial steel drums, improving product surface gloss and outdoor weather resistance.

Driven by environmental policies and intelligent manufacturing trends, steel drum spray booths are evolving toward intelligence, energy conservation and high flexibility. Firstly, intelligent automatic control is gradually popularized, realizing automatic adjustment of air volume, temperature and spraying parameters according to drum specifications to reduce manual intervention. Secondly, energy-saving optimization has become a mainstream direction; new circulation air supply systems reduce invalid energy consumption while maintaining purification efficiency. Thirdly, flexible modular design enables one device to adapt to multiple steel drum sizes, improving production flexibility. Meanwhile, higher-standard paint mist purification systems help enterprises meet increasingly stringent environmental protection thresholds.

In summary, steel drum spray booths are key environmental protection and quality control equipment in the metal packaging industry. They not only improve the surface coating quality and yield of steel drum products, but also standardize production environments and reduce industrial pollution. With the continuous upgrading of industrial packaging standards and environmental protection requirements, efficient, intelligent and eco-friendly steel drum spray booths will become standard configuration for high-quality steel drum manufacturing, driving the sustainable development of the entire metal drum packaging industry.

Steel Drum Spray Booth Core Technical Parameters

Parameter Category	Parameter Name	Specification	Notes
Applicable Specification	Applicable Drum Types	60–200L tight-head, open-head, and tapered drums	Standard industrial steel drum specifications, fully compatible with mainstream metal packaging production requirements
Spraying System	Coating Method	Electrostatic spray gun / High-pressure airless spraying (optional)	Dual optional spraying systems, adaptable to different coating materials, surface finish requirements and production scenarios
Production Capacity	Production Capacity	Customizable	Tailored to match the output of front-end drum forming lines and specific production volume demands
Precision & Efficiency	Coating Thickness Tolerance	≤±5μm	High-precision coating control, ensures uniform film thickness across the entire drum body, eliminating local over-coating or missing coating
Precision & Efficiency	Powder Recovery Rate	≥85%	High-efficiency overspray recovery system, reduces raw material waste, lowers production costs and meets environmental protection emission standards
Control System	Control System	PLC intelligent control; stores up to 100 coating recipes	Supports one-click parameter switching for different drum specifications, reduces manual adjustment errors and improves production line flexibility
Safety Compliance	Explosion-proof Rating	ExdIIBT4	Meets international explosion-proof standards, suitable for operation environments with flammable and explosive coating materials
Electrical Specification	Power Supply	380V/50Hz (customizable upon request)	Supports custom voltage and frequency configurations to adapt to different regional industrial power grid standards
